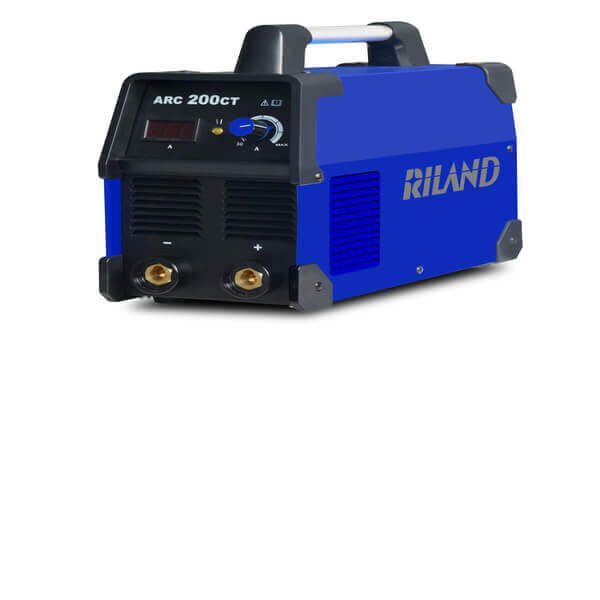

Inverter ARC 200 CT

The ARC 200CT use new genaration inverter MOSFET technology and highly efficient performance brings you deep impression. Even beginners can be easy to operate these machine.

Lights

MMA ARC 200 CT

Inverter ARC 200 CT

Processes Stick
Light Industratial
OutputInput

CC  DC1 phase 50/60 Hz

Basic Unit Includes

  • 1 PC Inverter power resource
  • 200A stick electrode holder, 3m cable with euro plug
  • 3m work cable and 300A clamp with Euro plug
  • 1P 220V/380V, 3m input cable without plug.

Key Options

  • Helmet
  • Hammer
  • Use 100 KHz inverter COOL - MOSFET Technology
  • With plastic corner, Sloping front panel
  • Adopt new techniques that maximizing thermal dissipation with 4 separated heat sinks.
  • Greatly improved the welding performance and stability ; easy striking and low voltage.
  • Intelligient protection: over voltage, over-loading and over-heating.
  • Auto-Adaptive arc force and hot start current.
  • Anti-stick function built-in.
  • Energy-efficient: power factor more than 0.7, efficency more than 85%.
  • Generator set okay.

Classification table.

Model Input voltage/Phase/Frequency Output current/Voltage/Duty Circle Amps Input at Rated Output Output range/OCV Dimension Weight
ARC 200 CT 220V/1P/50-60 Hz 170A/26.8V/20%@40oC
120A/24.8V/100@40o C		 34.8A@170A 30-170A/60V 402*160*300 6.2Kg
ARC 250 CT 220V/1P/50-60 Hz 200A/28V/20%@40oC
150A/26V/100@40o C		 42.8A@200A 30-200A/60V 402*160*300 6.5Kg


Lights

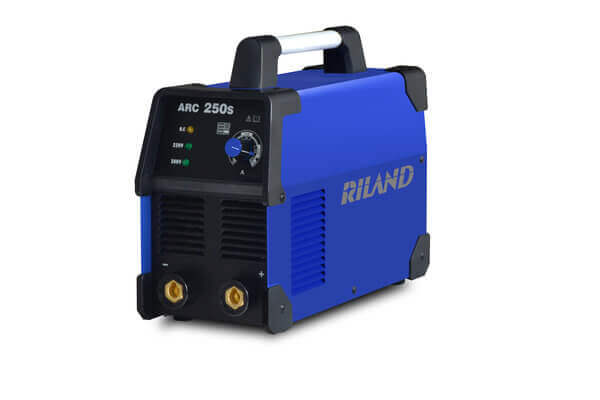

ARC 250S

Inverter ARC 250S

Feature Description
  • Dual voltage input in 220V or 380V
  • New generation of MOSFET inverter welding machine
  • Non-stop welding for 2.5mm and 3.2mm electrode, and also can be welding 4.0 MM diameter electrode
  • Anti-stick function built-in.
  • Most compact and portable.

Classification table.

Model Input voltage/Phase/Frequency Output current/Voltage/Duty Circle Amps Input at Rated Output Output range/OCV Dimension Weight
ARC 250S 220V(+-15%)/1P/50-60 Hz
380V(+-15%)/1P/50-60 Hzo C		 220V:150A/25.2V/60%@40oC
380V:190A/26.8V/20%@40o C		 220V:25.5A@150A
380V:20.5A@190A		 220V:30-150A/69A
380V:30-190A/63A		 371*153*290 (mm) 6.5Kg

Lights

MMA 400G

MMA 400G

This series welding machine with high cost performance. At the same price models, wheather appearance or performance, that another machine is unmatched.

Processes Stick
Heavy Industratial
OutputInput

CC  DC3 phase 50/60 Hz

Basic Unit Includes

  • 1 PC Inverter power resource
  • 500A stick electrode holder, 3m cable with euro plug
  • 3m work cable and 500A clamp with Euro plug
  • 1P 220V/380V, 3m input cable without plug.

Key Options

  • Helmet
  • MMA/ARC Remote control box
  • IGBT technology, the core adapts advanced IGBT inverter device
  • Wide range for input voltage,380V +-15%
  • Digital meter to preset and display welding current.
  • Dust Free Cooling System can be upgraded Duty Cycle.
  • Arc force and Hot start adjustable, easy to strike the arc.
  • VRD function, its safe for wenders.
  • Remote control function(optional) enlarge your welding Area, easy to operate.
  • Energy saving:More efficient compared with the traditional SCR machine.

Classification table.

Model Input voltage/Phase/Frequency Output current/Voltage/Duty Circle Amps Input at Rated Output Output range/OCV Dimension Weight
MMA 315G 380V/1P/50-60 Hz 315A/31.2V/40%@40oC
230A/29.2V/100@40o C		 19.7A@315A 40-315A/65V/15(VRD) 426*212*357 15Kg
MMA 400G 220V/1P/50-60 Hz 200A/28V/20%@40oC
150A/26V/100@40o C		 42.8A@200A 30-200A/60V 402*160*300 22Kg
